STUD BOLTS & FASTENERS

Stud Bolts & Fasteners for Critical Connections.

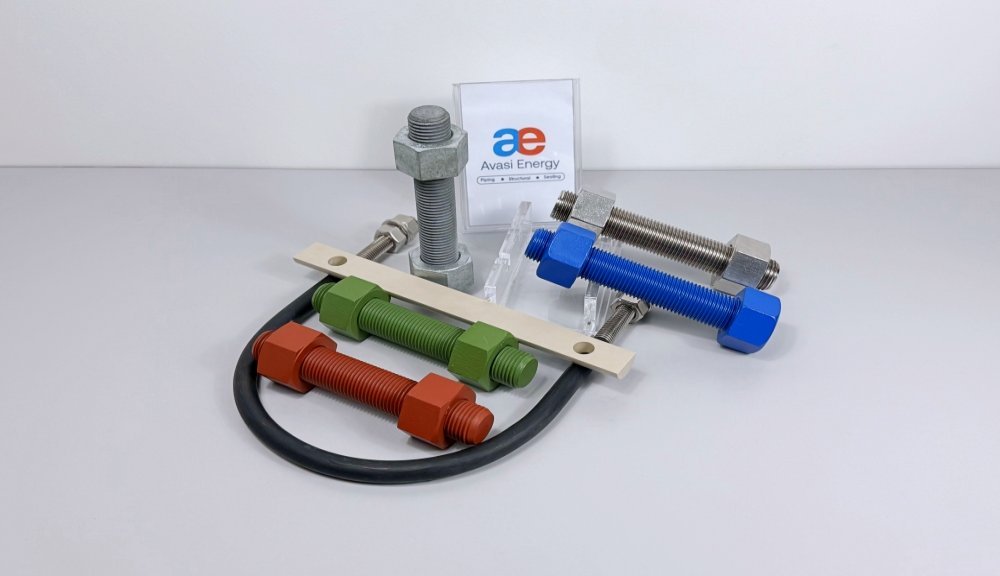

Avasi Energy supplies stud bolts, heavy hex nuts and industrial fasteners in Sabah and Malaysia, supporting piping, valve, equipment, project, maintenance and shutdown requirements.

Our sourcing scope covers bolting requirements according to the specified material grade, diameter, length, thread requirement, nut grade, surface treatment, service conditions, inspection and documentation requirements.

Based in Kota Kinabalu, Sabah, Avasi Energy works with manufacturers and supply partners in Malaysia and internationally to support standard and project-specific industrial bolting requirements.

In a flanged connection, stud bolts and nuts provide the clamping force required to maintain the assembled joint.

The bolting therefore works together with:

• Flange
• Gasket
• Stud Bolts
• Nuts
• Joint Assembly Procedure

A stud bolt should not be selected only by diameter and length.

Material grade, nut compatibility, thread configuration, coating, temperature, service environment and project requirements can all affect the correct supply specification.

Avasi Energy follows a requirement-first approach, reviewing the customer’s piping class, RFQ, material requisition or project specification before sourcing.

Stud bolts are widely used to assemble flanged piping, valves, pressure equipment and other bolted pressure-boundary connections.

Depending on the project requirement, Avasi Energy can support:

• Fully Threaded Stud Bolts
• Stud Bolts with Two Heavy Hex Nuts
• Project-Specified Lengths
• Inch and Metric Requirements
• Coated or Uncoated Bolting
• Special Material Requirements

The complete order description should identify the stud grade and compatible nut requirement rather than treating the stud bolt and nut as unrelated items.

ASTM A193 covers alloy-steel and stainless-steel bolting for high-temperature, high-pressure and other special-purpose applications, while ASTM A194 covers carbon, alloy and stainless-steel nuts used in high-pressure and/or high-temperature service.

In addition to stud bolts, selected project requirements may involve hex-head bolts and matching nuts.

Applications may include:

• Equipment Connections
• Supports
• Skids
• Structural or Mechanical Assemblies
• Project-Specific Fastening Requirements

Material, dimensions, thread, strength class, coating and applicable standard should follow the intended service and project specification.

Where specified, Avasi Energy can also support selected U-bolt and industrial fastening requirements for piping supports and mechanical applications.

Requirements may involve:

• Pipe U-Bolts
• Nuts & Washers
• Threaded Rods
• Project-Specific Fasteners
• Protective Sleeves or Coatings, where specified

Availability and configuration depend on the drawing, support specification and manufacturer capability.

ASTM A193 specifically covers alloy and stainless-steel bolting for pressure vessels, valves, flanges and fittings used in high-pressure or high-temperature service. ASTM A320 covers alloy and stainless-steel bolting for the same types of equipment in low-temperature service.

Important

These grades are not interchangeable simply because the bolt diameter is the same.

The correct grade should follow:

• Design Conditions
• Temperature
• Service Environment
• Flange / Equipment Specification
• Applicable Piping Class
• Project Requirements

One common procurement mistake is describing only the stud bolt grade.

For example: Stud Bolt ASTM A193 B7 may still be incomplete if the RFQ does not identify the required nut grade, coating, length, thread requirement and certification.

Common industry descriptions often pair ASTM A193 B7 studs with ASTM A194 Grade 2H heavy hex nuts, while sour-service and other specialised requirements can call for different material combinations. Malaysian suppliers already use this format extensively in current market offerings.

For Avasi, our message should be:

• Stud grade + Nut grade + Dimensions + Coating + Documentation = Complete bolting requirement.

Final stud/nut compatibility must always follow the customer’s project specification.

An industrial stud-bolt requirement should clearly identify more than nominal diameter.

Important information includes:

1. Diameter

   • Inch or metric according to the applicable specification.

2. Length

   • Measured according to the specified stud configuration and flange requirement.

3. Thread Series / Pitch

   • Specified according to the applicable project or dimensional standard.

4. Thread Coverage

   • Fully threaded or other project-specific configuration.

5. Nut Engagement

   • The installed arrangement must follow the applicable joint-assembly procedure.

ASME’s PCC-1 bolting training specifically covers stud length, nut engagement and accessible identification markings as elements of proper bolted-flange-joint assembly. ASME

Depending on project requirements, industrial fasteners may be supplied with surface treatments such as:

• Fluorocarbon / PTFE-Based Coating
• Xylan / Xylar-Type Coating Systems
• Hot-Dip Galvanizing
• Mechanical Galvanizing
• Zinc or Zinc-Nickel Coating
• Plain / Uncoated Finish
• Other project-specified coating systems

Special coatings such as cadmium-based systems should only be supplied where specifically permitted by the project requirements and applicable regulations.

Current Malaysian oil & gas suppliers commonly offer fluorocarbon, PTFE, HDG, mechanical galvanizing, zinc-nickel and related coating systems for industrial stud bolts.

Coating Is Not Only About Colour.

Surface treatment can influence:

• Corrosion Protection
• Environmental Exposure
• Thread Behaviour
• Installation Friction
• Joint Assembly Requirements

For pressure-boundary flanged joints, tightening or tensioning should follow the approved project or maintenance procedure rather than a generic torque number copied from a product webpage. ASME PCC-1 specifically addresses bolted-joint integrity, torque tightening and tensioning practices.

Avasi supplies the bolting product; final installation and tightening requirements remain governed by the applicable engineering and joint-assembly procedure.

Certain oil & gas applications require closer control of material properties, hardness, testing and documentation because of the service environment.

Requirements may involve:

• H₂S / Sour Service
• Low-Temperature Service
• High-Temperature Service
• Offshore / Marine Environments
• Corrosive Atmospheres
• Special Hardness Restrictions
• Additional Mechanical Testing
• Project-Specific Coatings
• Additional Inspection Requirements

For H₂S-containing oil and gas production environments, ISO 15156 provides requirements and recommendations for material selection and qualification. The currently published 2020 edition remains in place while a new edition is moving through the ISO approval process in 2026.

Avasi Energy coordinates sour-service bolting requirements according to the customer’s material requisition and applicable project specification rather than automatically describing a material as “NACE compliant” without the required supporting conditions and documentation.

For oil & gas and project applications, the fastener itself may be physically small, but its material identity and documentation can be critical.

Depending on the project specification and agreed supply scope, requirements may include:

• Manufacturer
• Country of Origin, where specified
• Material Grade
• Heat / Lot Number
• Diameter
• Length
• Thread Requirement
• Nut Grade
• Coating System
• Product Marking
• Material Certification
• Inspection Records

The goal is straightforward:

• The supplied bolting should remain traceable to the supporting documentation.

Dedicated industrial-fastener suppliers increasingly emphasize heat-number traceability, material verification and project-specific compliance as part of critical bolting supply.

Depending on the material grade, manufacturer capability and project specification, Avasi Energy can coordinate bolting documentation and inspection requirements including:

• Material Test Certificates — MTC / MTR
• EN 10204 3.1 / 3.2 Certification, where specified
• Chemical Analysis
• Mechanical Test Results
• Tensile Testing
• Hardness Testing
• Impact Testing, where applicable
• Positive Material Identification — PMI, where specified
• Coating Inspection / Certification
• Dimensional Inspection
• Thread Inspection, where specified
• Third-Party Inspection — TPI
• Certificates of Conformity / Compliance
• Inspection & Test Plan — ITP, where applicable
• Manufacturing Record Book / Data Book, where required

ASTM A193 specifies mechanical and hardness-related requirements for pressure bolting, while ASTM A320 additionally addresses impact requirements associated with low-temperature service.

The required documentation package should be established during enquiry review rather than after the material has already been manufactured or supplied.

Engineering teams need confidence that the material grade, nut pairing, coating and service requirements are technically aligned.

Procurement teams need a clear description that can be quoted and compared accurately.

Avasi Energy brings those requirements together by focusing on:

• Correct Specification
• Clear Product Description
• Traceable Documentation
• Responsive Sourcing
• Delivery Coordination

• Stud Bolt Details
• Diameter
• Length
• Material Specification / Grade
• Thread Requirement
• Quantity
• Nut Details
• Nut Specification / Grade
• Quantity per Stud
• Surface Treatment
• Plain / Coated
• Required Coating System
• Coating Thickness or Project Specification, where applicable
• Service Requirements
• Operating / Design Conditions, where relevant
• Low-Temperature Requirement
• Sour-Service Requirement
• Offshore / Corrosive Environment
• Quality Requirements
• Testing Requirements
• Inspection Requirements
• Documentation / MTC Requirements
• Third-Party Inspection, if applicable
• Approved Manufacturer Requirements, if applicable
• Required Delivery Date

Where available, attach:

• RFQ
• Piping Class
• Material Requisition
• Bolting Specification
• Drawing
• Project Specification

Example Ordering Description I recommend adding a simple example box:

• Stud Bolt, 1-1/8" Dia. X 240 mm LG, ASTM A193 Grade B7, c/w 2 Heavy Hex Nuts ASTM A194 Grade 2H, Fluorocarbon Coated, MTC 3.1 Required

Another special-service example:

• Stud Bolt, ASTM A193 Grade B7M, c/w ASTM A194 Grade 2HM Heavy Hex Nuts, coating and certification as per project specification

Examples only. Final description must follow the applicable project specification.

This style is already familiar to Malaysian O&G buyers and is more useful than a generic product enquiry.

1. Review
   • We review the required pipe specification, grade, dimensions, quantity, testing and documentation requirements.
2. Source
   • Suitable manufacturers and supply sources are identified according to the stated requirement.
3. Technical Compliance
   • The proposed pipe is reviewed against the agreed technical and commercial scope.
4. Inspection & Documentation
   • Required certification, testing and inspection documentation is coordinated where included within the supply scope.
5. Delivery Coordination
   • Final documentation and delivery requirements are coordinated through order completion.

Avasi Energy is based in Kota Kinabalu, Sabah, supporting pipe and piping-material requirements for customers, projects and industrial operations in East Malaysia.

Our local presence is supported by access to manufacturers and supply partners in Malaysia and internationally, allowing us to coordinate requirements according to project specifications rather than restricting customers to a single source or product range.

This positioning is increasingly relevant as Sabah’s OGSE ecosystem develops. PETRONAS reported in February 2026 that contracts secured by recognised Sabah-based OGSE vendors had grown substantially since 2021.

We support requirements associated with:

• Oil & Gas
• Petrochemical & Process
• Energy
• Offshore & Onshore Projects
• Maintenance & Shutdowns
• Brownfield Modifications
• Replacement Requirements

Send Avasi Energy your RFQ, piping class, bolting specification, material requisition, drawing or project specification.

Whether your requirement involves ASTM A193 bolting, low-temperature ASTM A320 materials, heavy hex nuts, coated studs, stainless steel or project-specific fasteners, our team will review the requirement and coordinate suitable sourcing options according to the specified technical, inspection, documentation and delivery requirements.
