PIPE FITTINGS

Pipe Fittings for Critical Piping Connections.

Avasi Energy supplies industrial pipe fittings in Sabah and Malaysia, supporting piping requirements for new projects, maintenance, shutdowns, modifications and operational needs.

Our supply scope includes buttweld fittings, forged socket-weld and threaded fittings, and selected branch outlet fittings, sourced according to customer requirements involving material grade, size, schedule, pressure class, connection type, applicable standards, testing and documentation.

Based in Kota Kinabalu, Sabah, Avasi Energy works with manufacturers and supply partners in Malaysia and internationally to support specification-driven piping requirements.

Pipe fittings perform several essential functions within a piping system — changing direction, creating branches, transitioning between sizes, terminating lines and connecting auxiliary piping.

But two fittings with the same nominal size may not necessarily be interchangeable.

The correct selection can depend on:

• Fitting Type
• Material Grade
• Size / NPS
• Pipe Schedule / Wall Thickness
• Pressure Class
• Connection Method
• Service Conditions
• Applicable Standard
• Testing Requirements
• Documentation Requirements

That is why Avasi Energy reviews the full requirement rather than sourcing against the product name alone.

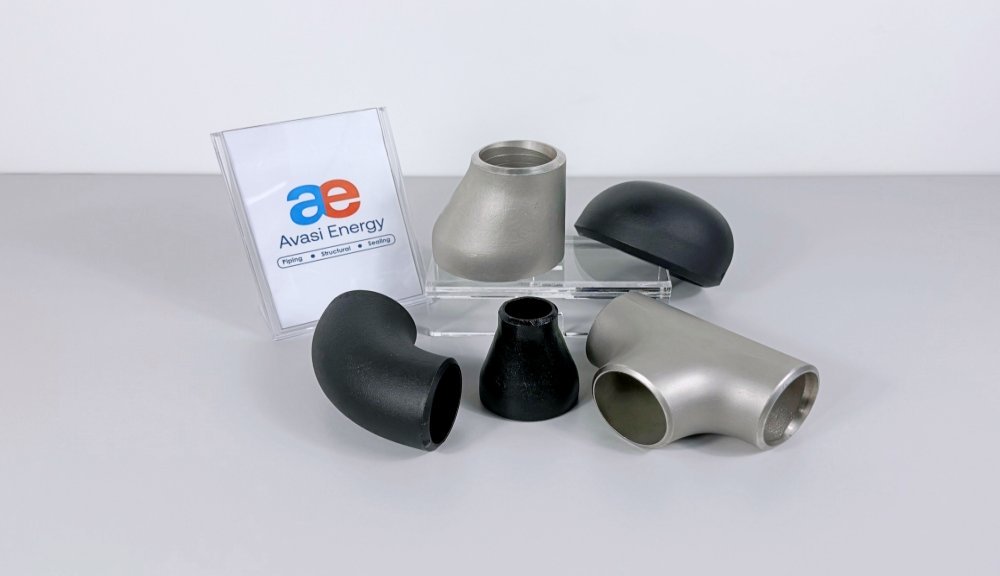

Buttweld fittings are welded directly to the adjoining pipe and are widely used across process piping, oil & gas facilities, petrochemical plants and energy infrastructure.

Depending on project requirements, Avasi Energy can support:

1. Elbows

   • 45° Elbows
   • 90° Elbows
   • 180° Returns
   • Long Radius
   • Short Radius, where applicable
   • Used to change the direction of a piping system.

2. Tees

   • Equal Tees
   • Reducing Tees
   • Used to create branch connections from the main piping run.

3. Reducers

   • Concentric Reducers
   • Eccentric Reducers
   • Used to transition between different pipe sizes according to piping design requirements.

4. Caps

   • Used to close the end of a piping line.

5. Stub Ends

   • Used with lap-joint flange arrangements where specified.

6. Other Project-Specific Fittings

   • Crosses, laterals, swage-type components and specialised fittings may also be sourced where required by the project specification and manufacturer capability.

Factory-made wrought buttwelding fittings are principally covered dimensionally by ASME B16.9, which addresses dimensions, tolerances, ratings, testing and markings.

Forged fittings are commonly used in smaller-bore piping systems where socket-weld or threaded connections are specified.

Avasi Energy supports forged fitting requirements including:

1. Socket-Weld Fittings

   • 45° Elbows
   • 90° Elbows
   • Tees
   • Crosses
   • Full Couplings
   • Half Couplings
   • Unions
   • Caps

2. Threaded Fittings

   • Elbows
   • Tees
   • Couplings
   • Unions
   • Caps
   • Plugs
   • Bushings

The exact configuration depends on the applicable standard and project specification.

ASME B16.11 covers ratings, dimensions, tolerances, markings and material requirements for socket-weld and threaded forged fittings. Current B16.11 class designations include Classes 2000, 3000 and 6000 for threaded fittings and Classes 3000, 6000 and 9000 for socket-weld fittings.

Certain piping systems require reinforced branch connections rather than conventional tee arrangements.

Depending on project requirements, Avasi Energy can support branch outlet fitting configurations such as:

• Buttweld Branch Outlets
• Socket-Weld Branch Outlets
• Threaded Branch Outlets
• Lateral / Special Branch Connections, where applicable

Branch outlet fittings may provide a compact method of creating branch connections while meeting specified piping design and reinforcement requirements.

Selection must consider the main run size, branch size, wall thickness, material, connection type and applicable project standard.

The appropriate fitting should follow the piping class, engineering specification and intended application.

Different process conditions require different fitting materials.

Avasi Energy can support pipe fitting requirements in a range of project-specified materials.

Carbon Steel

Common buttweld requirements may include grades such as ASTM A234 WPB, while forged carbon-steel fittings may involve ASTM A105/A105M, depending on the service.

ASTM A234 covers wrought carbon and alloy-steel fittings for pressure piping at moderate and elevated temperatures, while ASTM A105 covers forged carbon-steel piping components for pressure systems.

Low-Temperature Carbon Steel

Requirements may include materials associated with ASTM A420 WPL6 for buttweld fittings and project-specified forged low-temperature grades where applicable.

ASTM A420 covers wrought carbon and alloy-steel fittings intended for low-temperature pressure-piping service.

Stainless Steel

Common project requirements may include austenitic stainless-steel grades such as 304/304L and 316/316L.

ASTM A403/A403M covers wrought austenitic stainless-steel fittings for pressure-piping applications.

Alloy Steel

Selected high-temperature or specialised services may require alloy-steel fittings according to project specifications.

Duplex & Super Duplex

For selected offshore, marine and corrosive applications, duplex or super-duplex fittings may be specified.

ASTM A815/A815M covers wrought ferritic/austenitic stainless-steel piping fittings, which includes duplex-type materials.

Forged Stainless & Alloy Materials

Forged fittings may also involve grades covered by ASTM A182/A182M, depending on the service and project specification. ASTM A182 covers forged or rolled alloy and stainless-steel piping components for pressure systems.

Important: all grades shown above are examples of commonly specified materials. Final material selection must follow the applicable project specification.

Depending on product type and application, pipe fitting requirements may involve standards including:

1. ASME B16.9

   • Factory-Made Wrought Buttwelding Fittings

2. ASME B16.11

   • Forged Fittings — Socket-Welding and Threaded

3. ASME B16.25

   • Buttwelding End Preparation, where applicable

4. MSS Standards

   • For selected fitting configurations and branch connections

5. ASTM A234/A234M

   • Carbon and Alloy-Steel Wrought Fittings

6. ASTM A403/A403M

   • Austenitic Stainless-Steel Wrought Fittings

7. ASTM A420/A420M

   • Low-Temperature Carbon and Alloy-Steel Fittings

8. ASTM A815/A815M

   • Ferritic / Austenitic Stainless-Steel Fittings

9. ASTM A105/A105M

   • Carbon-Steel Forged Piping Components

10. ASTM A182/A182M

    • Alloy and Stainless-Steel Forged Piping Components

11. NACE MR0175 / ISO 15156

    • Where sour-service material requirements are applicable.

Applicable editions and supplementary requirements must follow the customer’s project specification.

For buttweld fittings, wall thickness or pipe schedule must align with the specified piping configuration.

For forged fittings, pressure-class designation and connection type are key elements of the requirement.

This is where many purchasing mistakes occur.

A request should clearly identify:

1. For Buttweld Fittings

   • Type
   • Size
   • Schedule / Wall Thickness
   • Material Grade
   • Seamless or Welded, where specified
   • Applicable Standard

2. For Forged Fittings

   • Type
   • Size
   • Socket-Weld or Threaded
   • Pressure Class
   • Material Grade
   • Thread Requirement, where applicable

3. For Branch Fittings

   • Run Size
   • Branch Size
   • Connection Type
   • Wall Thickness / Schedule
   • Material Grade
   • Applicable Standard

Oil & gas applications may require additional controls due to process conditions and operating environment.

Depending on project requirements, fitting specifications may include considerations associated with:

• H₂S / Sour Service
• Low-Temperature Service
• High-Temperature Service
• Corrosive Environments
• Offshore Applications
• Additional NDE
• Impact Testing
• Hardness Control
• PMI Requirements
• Project-Specific Manufacturing Requirements

Avasi Energy coordinates these requirements against the material requisition and agreed supply scope.

Final engineering suitability remains governed by the customer’s design and applicable project specification.

For oil & gas and critical piping systems, product traceability may form an important part of compliance.

Depending on specification and supply scope, requirements may include verification of:

• Manufacturer / Mill
• Material Grade
• Heat Number
• Fitting Type & Size
• Schedule or Pressure Class
• Applicable Standard
• Product Markings
• Material Certification
• Country of Origin, where required
• Inspection & Test Records

Traceability requirements should be agreed during the enquiry stage.

Avasi Energy can coordinate testing, inspection and documentation requirements according to the product specification, manufacturer capability and agreed supply scope.

Depending on the requirement, this may include:

• Material Test Certificates — MTC / MTR
• EN 10204 3.1 / 3.2 Certification, where specified
• Chemical & Mechanical Test Results
• Dimensional Inspection
• Visual Inspection
• Hardness Testing
• Impact Testing, where required
• Positive Material Identification — PMI, where specified
• Non-Destructive Examination — NDE/NDT, where specified
• Third-Party Inspection — TPI
• Certificates of Conformity / Compliance
• Inspection & Test Plans — ITP
• Manufacturing Record Book / Data Book

The required inspection and documentation package should be defined before order placement.

Engineering teams need confidence that the proposed fitting aligns with the piping specification.

Procurement teams need clarity around compliance, quantity, documentation, lead time and delivery.

Avasi Energy works between these requirements by reviewing both the technical requirement and the commercial supply scope.

Our role is not simply to identify a fitting that looks similar.

Our role is to coordinate a product that aligns with what has actually been specified.

For faster and more accurate quotation, please provide the following information where available.

1. Buttweld Fittings

   • Fitting Type
   • Size / NPS
   • Schedule / Wall Thickness
   • Material Grade
   • Applicable Standard
   • Seamless / Welded Requirement, if specified
   • Quantity

2. Forged Fittings

   • Fitting Type
   • Size / NPS
   • Socket-Weld / Threaded
   • Pressure Class
   • Material Grade
   • Thread Type, where applicable
   • Quantity

3. Project Requirements

   • Sour-Service Requirement
   • Testing / Inspection Requirements
   • Documentation Requirements
   • Approved Manufacturer Requirements, if applicable
   • Required Delivery Date

Where available, attach:

• RFQ
• Material Requisition
• Piping Class
• Datasheet
• Project Specification

1. Review
   • We review the required pipe specification, grade, dimensions, quantity, testing and documentation requirements.
2. Source
   • Suitable manufacturers and supply sources are identified according to the stated requirement.
3. Technical Compliance
   • The proposed pipe is reviewed against the agreed technical and commercial scope.
4. Inspection & Documentation
   • Required certification, testing and inspection documentation is coordinated where included within the supply scope.
5. Delivery Coordination
   • Final documentation and delivery requirements are coordinated through order completion.

Avasi Energy is based in Kota Kinabalu, Sabah, supporting pipe and piping-material requirements for customers, projects and industrial operations in East Malaysia.

Our local presence is supported by access to manufacturers and supply partners in Malaysia and internationally, allowing us to coordinate requirements according to project specifications rather than restricting customers to a single source or product range.

This positioning is increasingly relevant as Sabah’s OGSE ecosystem develops. PETRONAS reported in February 2026 that contracts secured by recognised Sabah-based OGSE vendors had grown substantially since 2021.

We support requirements associated with:

• Oil & Gas
• Petrochemical & Process
• Energy
• Offshore & Onshore Projects
• Maintenance & Shutdowns
• Brownfield Modifications
• Replacement Requirements

Send Avasi Energy your RFQ, material requisition, piping class or project specification.

Whether your requirement involves buttweld elbows and tees, forged socket-weld fittings, threaded fittings, branch outlets or specialised material grades, our team will review the scope and coordinate suitable sourcing options according to the stated technical, inspection, documentation and delivery requirements.
